Crimped Wire Stainless Steel Mesh Vibrating Screen, Shaker Screen For Mining
Vibrating mining screen is used for screening ore in extractive metallurgy, mineral processing, also known as ore dressing sieve. Crimped stainless steel mesh sifting sieves are used for sizing coarse to small particles, to separate commercial valuable minerals from their crude ores. The sieves are designed with metal fine mesh of different apertures for grading and testing ues. Learn more.

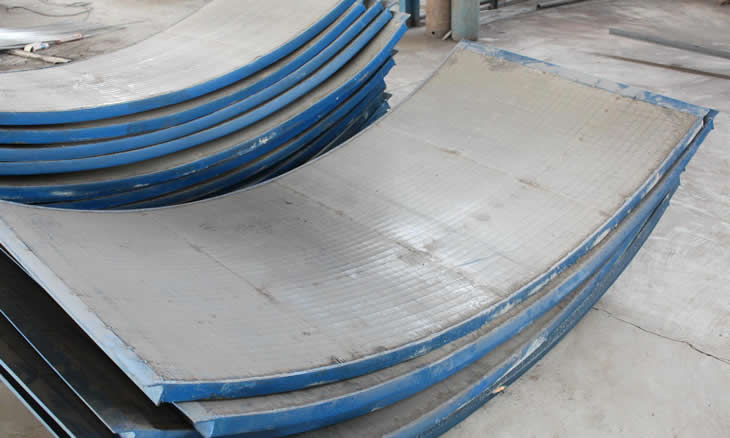

Arc Panel Sieve Bends Mining Screen: Made of magnese, carbon steel or stainless steel wedge wire screen.
Wedge profile sieves for High Frequency Vibrating Equipment accessories, also called mining sieve. Bend type sifting sieve is mainly used in coal mine for dewatering uses, sugar cane processing for sludge treatment. Also known as DSM sieve or juice sieve.
Learn more.
Shale Shaker Screens for oil field drilling mud treatment as wearing parts of the shale shakers. The shale shaker system is designed to handle large liquid flow rate capacity, plugging & blinding resistance, durable & long lasting construction in drilling mud projects.
According to materials used, the shaker screen can be divided into stainless steel wire screen, polyester screen and composite shaker screen products.
The popular vibrating and shale shaker screen types in the market are classified into 4 categories: Steel Frame Shale Shaker Screen, Waved Shale Shaker Screen, Hook Strip Flat Screen and Hook Strip Soft Screen.
Learn more about various parts.
Steel Frame Shale Shaker Screen : Linear Vibrating Screen replacement mesh backed with perforated metal.
Shaker Screen with Hexagonal Perforated Steel Plate
Screen Model |
Range of Mesh |
Weight |
DTM |
12-325 |
12.0 |
DTB-5 (PTC) |
12-325 |
13.5 |
DTV-3 |
12-325 |
125 |
HKK-48(PTC) |
12-325 |
17.0 |
DTF300 |
12-325 |
17.0 |
Waved Shale Shaker Screen: As compared to flat screens, pleated mesh screens have higher handling capacity with more work area.
| Screen Model | Range of Mesh |
Weight(K9) |
DTB-5 |
80-325 |
17.5 |
DTF-5 |
80-325 |
7.5 |
DTF-2 |
80-325 |
5.8 |
DTL-2D |
80-325 |
10.0 |
Hook Strip Flat Screen Suitable for FLC503 and 2000 shale shakers
The screen can be mounted on suitable shaker by hookstripe, or wedge-shaped fastening device.
| Screen Model | Range of Mesh |
Weight ( Kg ) |
HSF-3 |
10-325 |
5.6 |
HSF-II |
10-325 |
9.0 |
HSF-5 |
10-325 |
6.0 |
HSS |
10-325 |
4.2 |
HSF |
10-325 |
4.0 |
HSF-2D |
10-325 |
8.6 |
HSF-48 |
10-325 |
5.6 |
HSF-5250 |
10-325 |
4.6 |
HSF - ZX |
10-325 |
9.2 |
Hook Strip Soft Screen for Petroleum and Oil Industry
| Screen Model | Range of Mesh |
Weight (Kg) |
DT-NCS(Soft) |
20-250 |
1.5 |
DT-5250 ( Soft ) |
20-250 |
2.0 |
DT-ZCN |
80-210 |
2.4 |
DT-NS |
80-210 |
2.8 |
DTSS |
20-80 |
2.1 |
DTSS |
20-80 |
4.5 |
Tensioned Stainless Steel Mesh Sifting Screen for Solid Control
Stainless steel mesh sieves and sifters include several types:
Vibrating sift sandwitch screen for oil field vibrating; mesh disc filter; stainless steel mesh test sieves; extruder screen; etched stainless steel plate sieves; perforated plate sieves; knitted mesh demister pad and etc.
Wedge Wire Screen: For oil and water well drilling sand control
Water Well Screens consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Wedge Wire Well Screens enjoy sturdy constriction and good mechanical property.
Sand Modular Polyurethane Mining Screen
Polyurethane screen has much lower noise than the woven vibrating screen mesh or perforated vibrating screen mesh in processing. Learn more.
